NEURON Note #30

Goals: D-type Voltage-gated Potassium Current

Introduction:

The goal of this short project is to create a KD model, which can reproduce the data presented in Mathews et al's article (http://www.nature.com/neuro/journal/v13/n5/full/nn.2530.html). The liquid potential is not corrected. The activation GV curve is shifted to depolarization direction to simulate the condition in whole cell recording.

Results:

Target Parameters for KD

mV1/2 = -28
mK = 7.4

hV1/2 = -57.1
hK = 6.2

Model

g = gbar * m⁴ * h

Mod file: kd_pyc.mod

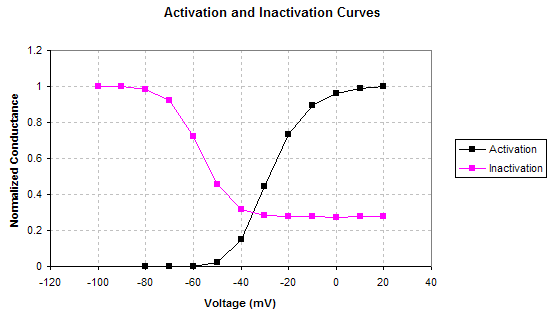

Activation and Inactivation Conductance Curves

Voltage and Current Traces
Activation	Inactivation

Time Constants

Deactivation	Time Constant
