NEURON Tutorial #6

Goals: Measure temporal summation

Specific aims:

Downloads:

//======================================
// File Name: 3_TemporalSummation.hoc
// Assemble Temporal Summation Box

//======================================
// Start of the box
temporalSummationBox.intercept(1)
{
	//======================================
	// Control panel
	xpanel("", 0)	// Start the panel("Title", 0: vertical lay out)
	{
		xlabel("After simulation")	// Display "After simulation"
		// Measure temporal summation
		xbutton("Measure Temporal Summation","MeasureTemporalSummation()")
	}
	xpanel() // Close the panel

	//======================================
	// Add the run control panel
	load_file(1, "RunControl.hoc")
}
temporalSummationBox.intercept(0)// End of the box

//======================================
// Set Alpha current
proc SetAlphaCurrent() {
	print "Set alpha current"
	numPts = experimentDuration/dt + 1	// Calculate total number of points
	iVector.resize(numPts)	// Change the size of iVector
	iVector.fill(0)		// Initialize iVector
	intervalPts=50/dt	// Number of points between two injections, 50 ms
	startPts=100/dt		// The start point for the first injection
	alpha=0.1		// 10 ms
	amp=0.03		// [nA]

	for(j=0; j<5; j+=1) {
		k=0
		for(i=startPts+j*intervalPts; i<iVector.size; i+=1) {
			relativeTime=k*dt
			iVector.x(i)+=amp*relativeTime*exp(-alpha*relativeTime)
			k+=1
		}
	}
}

//======================================
// Measure temporal summation
proc MeasureTemporalSummation() {
	vMean = vVector.mean(50/dt, 100/dt)		// Baseline
	vMax1 = vVector.max(100/dt, 150/dt) - vMean	// First EPSP
	vMax5 = vVector.max(300/dt, 350/dt) - vMean	// Fifth EPSP

	temporalSummation = (vMax5-vMax1)/vMax1*100	// Temporal summation

	print "Temporal Summation = ", temporalSummation, " (%)"	// Display dat
}

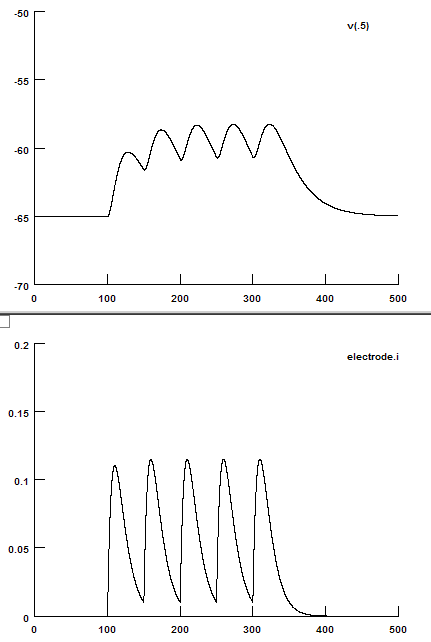

Alpha Summation

Alpha Summation
