1. Draw a Rectangle and Two Points - From Creating A Project to Drawing

Back to Cocoa Graphics table of contents

This tutorial will show you the steps from creating a project to drawing a rectangle and two points. Xcode 4.5.2 was used here. I assume you know the basics of Objective-C.

The focus of this tutorial is to show you the steps to draw primitive shapes in a view. Therefore, I will avoid using other techniques not related to Cocoa graphics. In addition, I will not try to draw beautiful things for now. These extra efforts might distract you from graphics. However, I encourage you to play with the code and see the effects, which is a great way to REALLY learn graphics and any other programming techniques. After you gaining the knowledge and skills about Cocoa graphics, you will be able to enjoy generating beautiful drawings and maybe share them with the world.

As the title mentioned, I will show you how to create a project, create a view class, and draw a rectangle and a few points.

Create the basic structure of the program

• Launch Xcode.
• Select menu: "File > New > Project...".
• Select "OS X > Application > Cocoa Application" template. Click "Next".

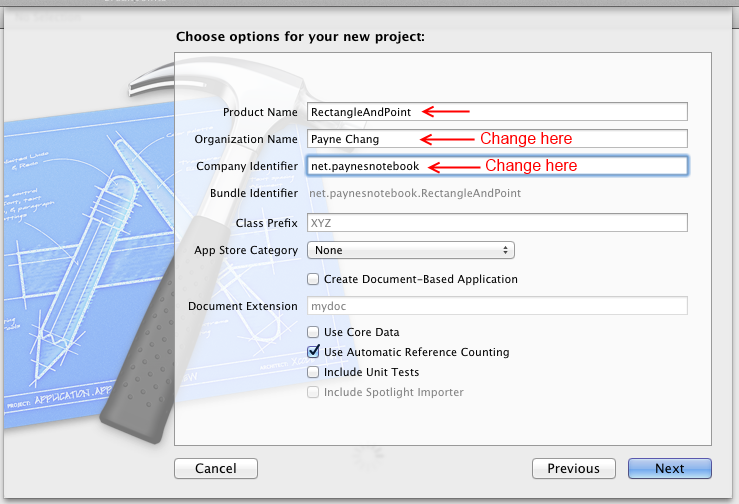

• Fill the dialog similar to the following figure. Click "Next".

• Select a location for the project. Click "Create" with default settings.

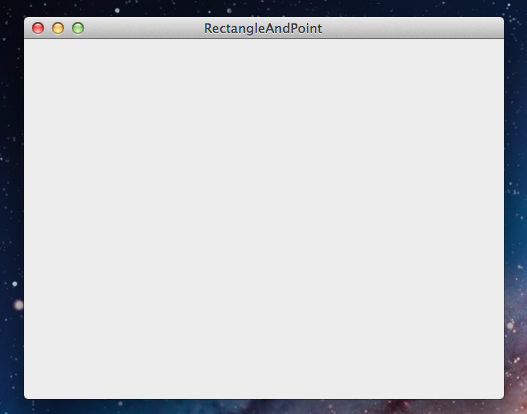

• Click "Run" and you will see a window like the following figure.

• Select menu: "RectangleAndPoint > Quit RectangleAndPoint" to quick this program for now. The basic structure of the program is done.

Create a customed view class - MyView, and draw a blue rectangle

• Select "RectangleAndPoint" folder in the Project Navigator


• Select menu: "File > New > File...".
• Select "OS X > Cocoa > Objective-C class" and click "Next".

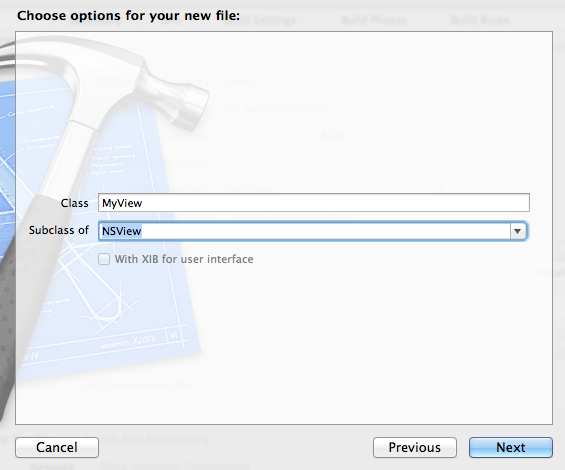

• Complete the dialog like the following figure and click "Next".


• Click "Create" with default settings.

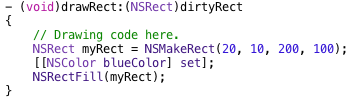

• Revise "MyView.m > drawRect:" so it looks like the following.

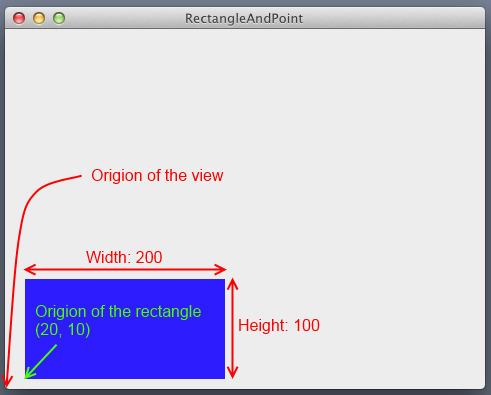

  • In this code, we first created a rectangle, myRect. (20, 10) is the position of the origin. 200 is the width and 100 is the height.
  • We need to set the color before we draw anything. Otherwise, the default color or the previous used color is used. Here, we set the color to blue.
  • The last line of code filled the rectangle with the set color.
  • By the way, the default origin of the view is the bottom left corner. Similarly, the origin of a rectangle is the lower left corner.
  • Notice that the length unit of the coordination is 1/72 inch. Therefore, 72 units correspond to one inch and 0.1 unit corresponds to 1/720 inch on the screen.

• Select "MainMenu.xib" in the Project Navigator.
• Select "Window - RectangleAndPoint".


• In "Object library" pan, type in "Custom View" in the search bar. You shoud see something similar to the following.

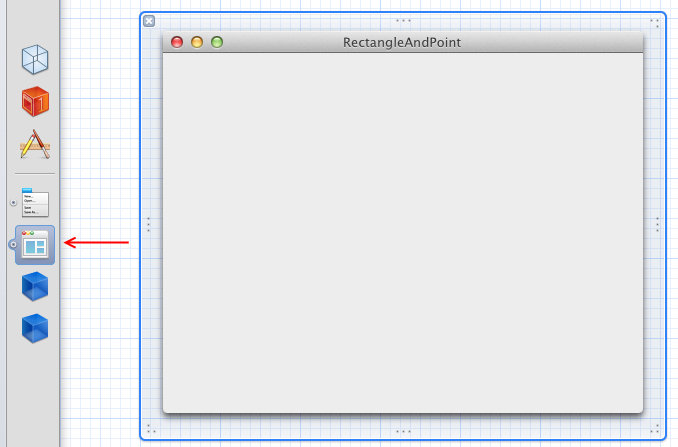

• Drag "Custom View" from the "Object library" to the RectangleAndPoint window. The result will be similar to the following.

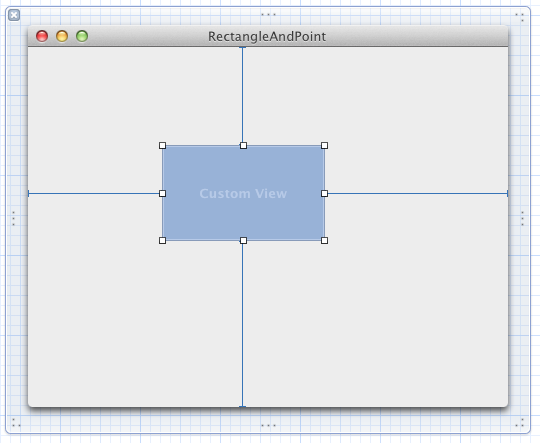

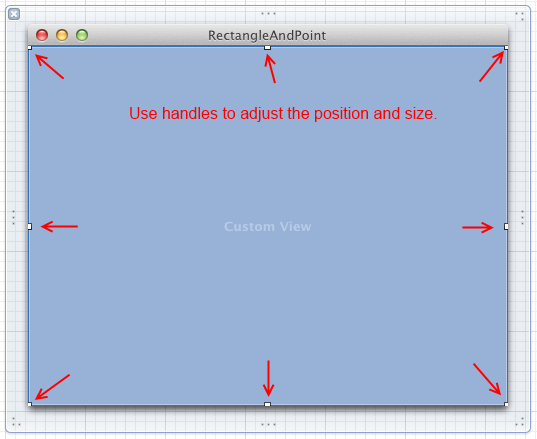

• Adjust the position and the size of the "Custom View" so it looks like:


• When "Custom View" is selected, select "Identity inspector" and select/type in "MyView", like the following:


• Click "Run" and you will see a blue rectangle in your window.


Draw two points

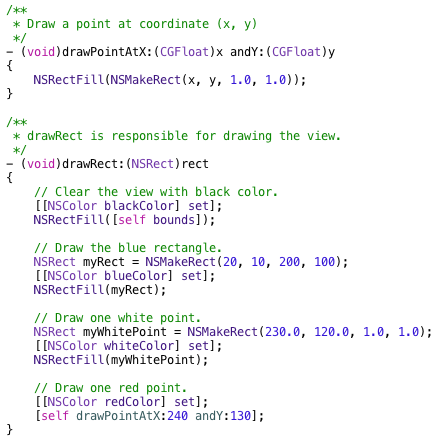

To my knowledge, there is no native support for drawing a point. Instead, we can use rect to draw a point. In the following code, the drawRect: function is revised to change the background to black and draw a white point. An additional function, drawPointAtX: andY:, was created to draw a red point at (x, y). The following is the revised code:

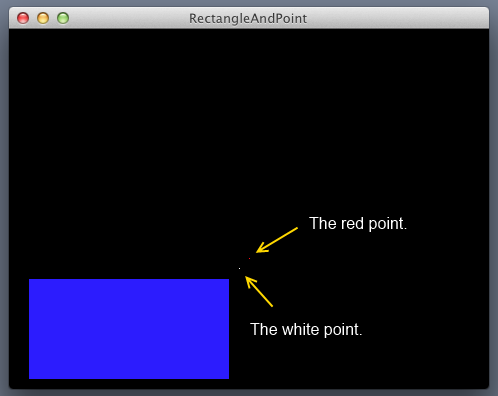

The following is the result.

And, the following is the zipped final project.

RectangleAndPoint.zip
